Get started with maps

The Navigation SDK for Android delivers powerful mapping capabilities, enabling developers to effortlessly integrate dynamic map views into their applications. Core features include embedding and customizing map views, controlling displayed locations, and fine-tuning map properties. At the center of the mapping API is the UnlMapSurfaceView class, which serves as the primary component for rendering maps and handling user interactions.

Display a map​

See the Code Implementation section from Create your first app guide for a complete example of displaying a basic map in your application.

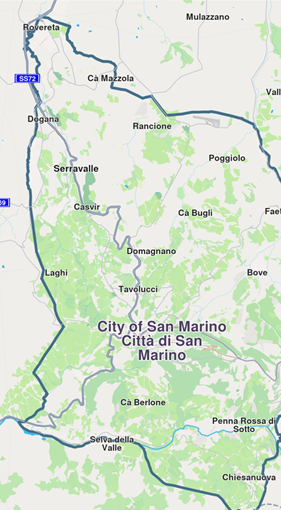

Displaying a default day map

UnlMapSurfaceView​

The UnlMapSurfaceView class is the primary component for displaying maps in an Android application. It extends GLSurfaceView and provides a complete OpenGL rendering surface for map display with built-in touch interaction handling.

Key Features​

• Automatic SDK Initialization: If UnlSdk isn't initialized, the surface automatically calls UnlSdk.initSdkWithDefaults() when attached to a window
• Default UnlMapView Creation: Creates a default UnlMapView automatically unless disabled
• Touch Event Handling: Built-in support for pan, zoom, and other map interactions
• Lifecycle Management: Automatic resource management with configurable cleanup behavior
• OpenGL Context Management: Handles EGL context creation and configuration

Properties​

Property	Type	Description
gemGlContext	OpenGLContext?	The OpenGL context created by this surface
gemScreen	Screen?	The screen object for rendering operations
mapView	UnlMapView?	The default UnlMapView instance (if auto-creation is enabled)
hadBeenInitialized	Boolean	Flag indicating if this instance has been initialized
hadBeenReleased	Boolean	Flag indicating if this instance has been released
visibilityChangeListener	VisibilityChangeListener?	Listener for visibility change events

Callback Functions​

Callback	Description
onInitSdk	Called when the view is about to initialize the SDK. If provided, user is responsible for SDK initialization
onSdkInitSucceeded	Triggered after successful SDK initialization
onScreenCreated	Called after the OpenGL screen has been successfully created
onDefaultMapViewCreated	Triggered after the default UnlMapView has been created
onPreHandleTouchListener	Called before the screen handles touch events
onPostHandleTouchListener	Called after the screen handles touch events
onDrawFrameCustom	Custom drawing operations on the OpenGL thread

XML Attributes​

You can configure UnlMapSurfaceView behavior using XML attributes:

<com.unlmap.sdk.core.UnlMapSurfaceView
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    app:createDefaultMapView="true"
    app:autoReleaseOnDetachedFromWindow="true"
    app:sdkToken="your_sdk_service_key" />

Attribute	Type	Default	Description
createDefaultMapView	Boolean	true	Whether to automatically create a default UnlMapView
autoReleaseOnDetachedFromWindow	Boolean	true	Whether to automatically release resources when detached
sdkToken	String	null	SDK authorization token

Methods​

Method	Description
release()	Releases the drawing context and associated resources
releaseDefaultMapView()	Releases only the default UnlMapView while keeping the surface active

Usage Example​

• Kotlin
• Java

// Kotlin
// In your Activity or Fragment
val UnlMapSurfaceView = findViewById<UnlMapSurfaceView>(R.id.UnlMapSurfaceView)

// Configure callbacks
UnlMapSurfaceView.onDefaultMapViewCreated = { mapView ->
    // Configure your map view
    mapView.centerOnCoordinates(coordinates, zoomLevel)
}

UnlMapSurfaceView.onSdkInitSucceeded = {
    // SDK is ready
    Log.d("Map", "SDK initialized successfully")
}

// Add to your layout
parentLayout.addView(UnlMapSurfaceView)

// Java
// In your Activity or Fragment
UnlMapSurfaceView UnlMapSurfaceView = findViewById(R.id.UnlMapSurfaceView);

// Configure callbacks
UnlMapSurfaceView.setOnDefaultMapViewCreated(mapView -> {
    // Configure your map view
    mapView.centerOnCoordinates(coordinates, zoomLevel);
});

UnlMapSurfaceView.setOnSdkInitSucceeded(() -> {
    // SDK is ready
    Log.d("Map", "SDK initialized successfully");
});

// Add to your layout
parentLayout.addView(UnlMapSurfaceView);

Programmatic Creation​

• Kotlin
• Java

// Kotlin
val UnlMapSurfaceView = UnlMapSurfaceView(
    context = this,
    doCreateDefaultMapView = true,
    sdkToken = "your_sdk_service_key",
    autoReleaseOnDetachedFromWindow = true,
    postLambdasOnMain = true
)

// Java
UnlMapSurfaceView UnlMapSurfaceView = new UnlMapSurfaceView(
    this,
    true,  // doCreateDefaultMapView
    "your_sdk_service_key",
    true,  // autoReleaseOnDetachedFromWindow
    true   // postLambdasOnMain
);
