Display routes

Routes can be displayed on the map by using mapView.preferences?.routes?.add(route, isMainRoute). Multiple routes can be displayed at the same time, but only one is the main one, the others being treated as secondary. Specifying which one is the main route can be done when calling MapViewRoutesCollection.add() by passing true to the mainRoute parameter, or by calling the MapViewRoutesCollection.mainRoute setter.

• Kotlin
• Java

// Kotlin
mapView.preferences?.routes?.add(route, true)
mapView.centerOnRoute(route)

// Java
if (mapView.getPreferences() != null) {
    mapView.getPreferences().getRoutes().add(route, true);
}
mapView.centerOnRoute(route);

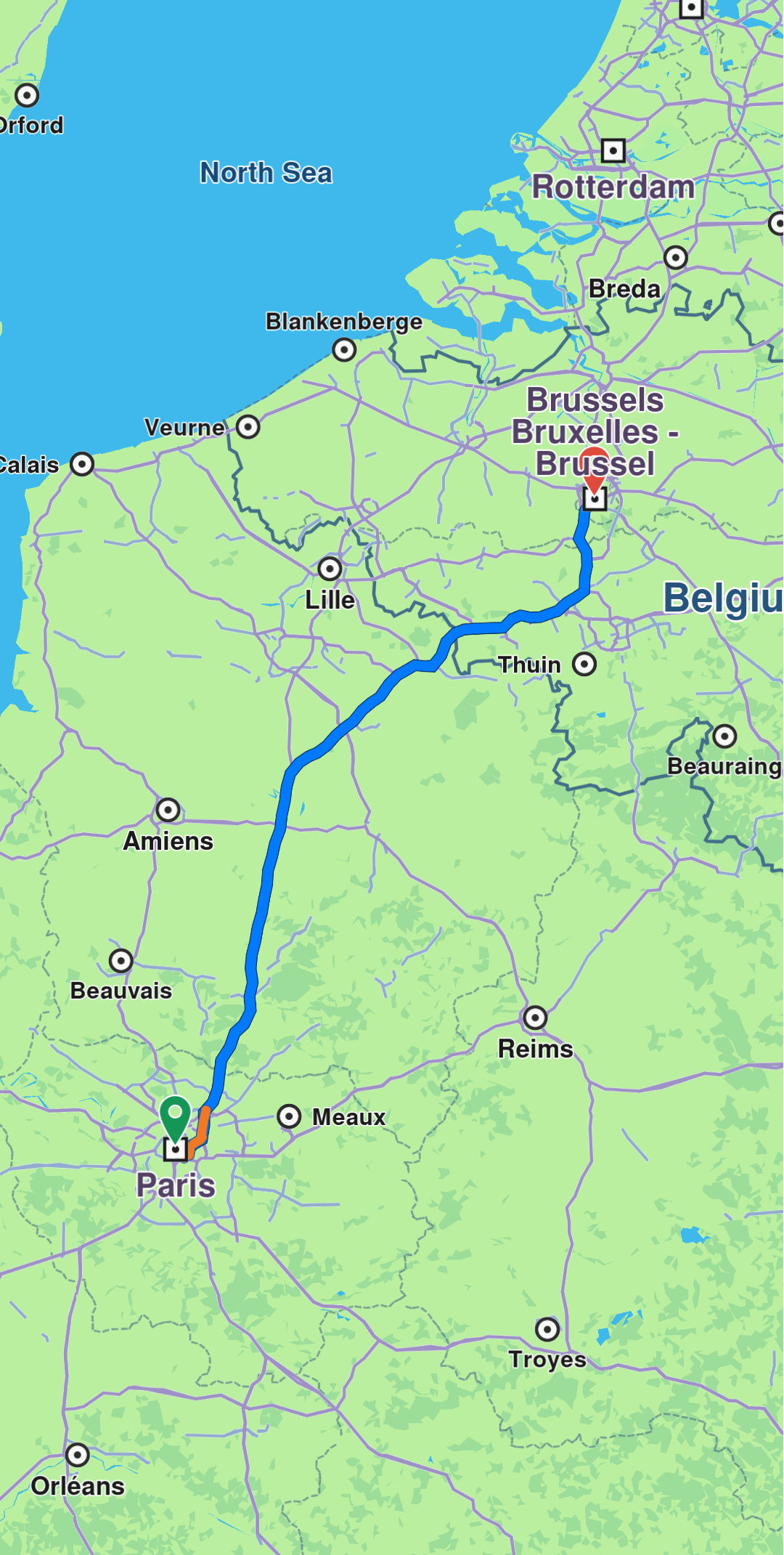

Route displayed

💡 Tip

To center on a route with padding, refer to the Adjust Map View guide. Utilize the rect parameter in the centerOnRoute method to define the specific region of the viewport that should be centered.

• Kotlin
• Java

// Kotlin
mapView.preferences?.routes?.add(route1, true)
mapView.preferences?.routes?.add(route2, false)
mapView.preferences?.routes?.add(route3, false)
mapView.centerOnRoutes(arrayListOf(route1, route2, route3))

// Java
if (mapView.getPreferences() != null) {
    mapView.getPreferences().getRoutes().add(route1, true);
    mapView.getPreferences().getRoutes().add(route2, false);
    mapView.getPreferences().getRoutes().add(route3, false);
}
ArrayList<UnlRoute> routes = new ArrayList<>();
routes.add(route1);
routes.add(route2);
routes.add(route3);
mapView.centerOnRoutes(routes);

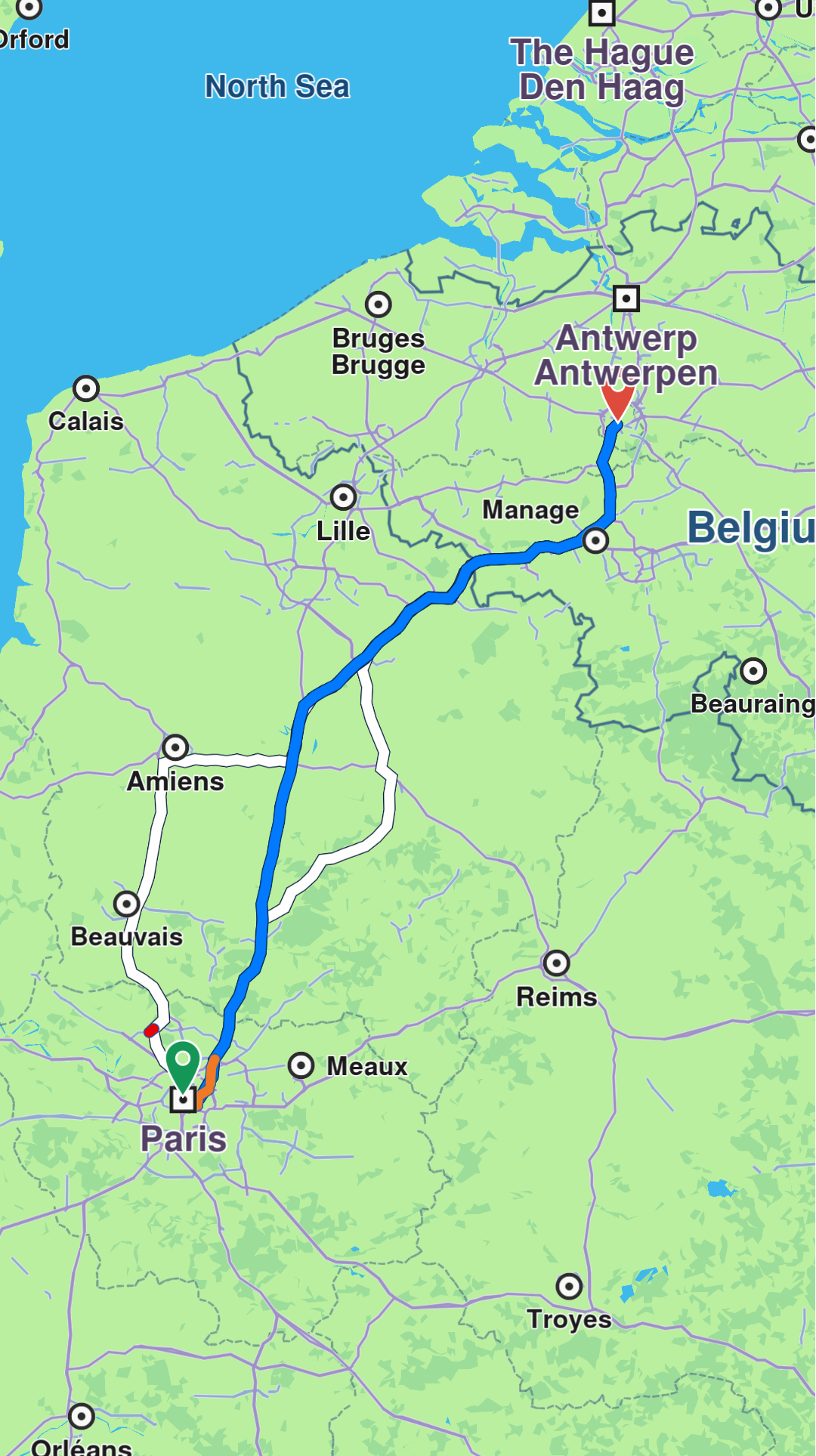

Three routes displayed, one in the middle is main

Route appearance on map can be customized via UnlRouteRenderSettings when added, passed to the MapViewRoutesCollection.addWithRenderSettings() method, or later on, via UnlMapViewRoute.renderSettings setter.

• Kotlin
• Java

// Kotlin
val renderSettings = UnlRouteRenderSettings().apply {
    innerColor = Rgba(255, 0, 0, 255)
}
mapView.preferences?.routes?.addWithRenderSettings(route, renderSettings)

// Java
UnlRouteRenderSettings renderSettings = new UnlRouteRenderSettings();
renderSettings.setInnerColor(new Rgba(255, 0, 0, 255));
if (mapView.getPreferences() != null) {
    mapView.getPreferences().getRoutes().addWithRenderSettings(route, renderSettings);
}

• Kotlin
• Java

// Kotlin
val mapViewRoute = mapView.preferences?.routes?.getMapViewRouteByIndex(0)
mapViewRoute?.renderSettings = UnlRouteRenderSettings().apply {
    innerColor = Rgba(255, 0, 0, 255)
}

// Java
UnlMapViewRoute mapViewRoute = null;
if (mapView.getPreferences() != null) {
    mapViewRoute = mapView.getPreferences().getRoutes().getMapViewRouteByIndex(0);
}
if (mapViewRoute != null) {
    UnlRouteRenderSettings renderSettings = new UnlRouteRenderSettings();
    renderSettings.setInnerColor(new Rgba(255, 0, 0, 255));
    mapViewRoute.setRenderSettings(renderSettings);
}

All dimensional sizes within the UnlRouteRenderSettings are measured in millimeters.

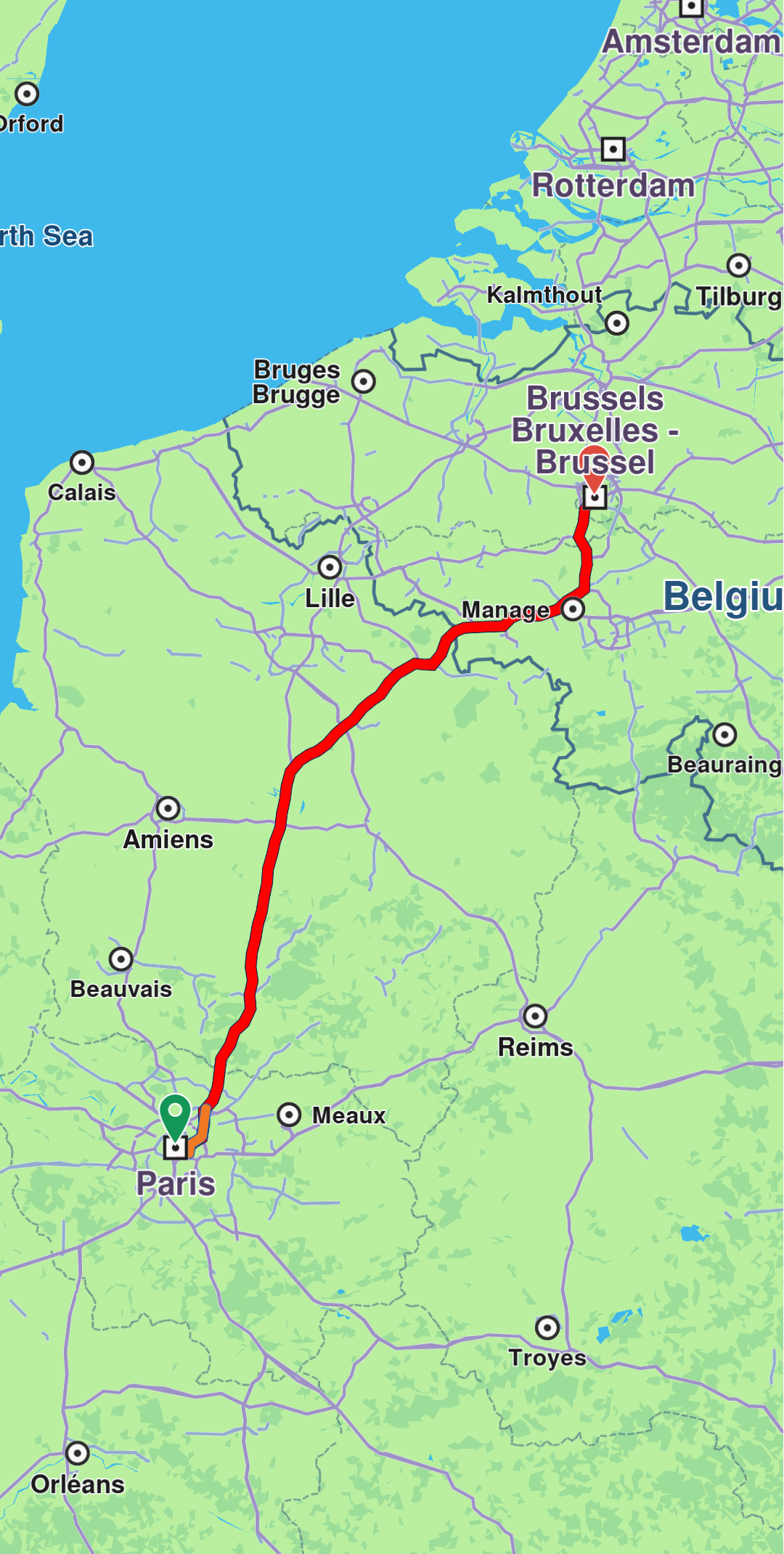

Route displayed with custom render settings

Convenience methods​

The UnlMapView class provides convenient presentRoute and presentRoutes methods that combine adding routes to the collection and centering the map:

• Kotlin
• Java

// Kotlin
// Present a single route with default settings
mapView.presentRoute(route)

// Present a single route with custom settings
mapView.presentRoute(
    route,
    displayBubble = true,
    displayRouteName = true,
    displayTrafficIcon = true,
    centerMapView = true
)

// Present multiple routes
mapView.presentRoutes(
    routes,
    mainRoute = routes.first(),
    displayBubble = true,
    centerMapView = true
)

// Java
// Present a single route with default settings
mapView.presentRoute(route);

// Present a single route with custom settings
mapView.presentRoute(
    route,
    true,  // displayBubble
    true,  // displayRouteName
    true,  // displayTrafficIcon
    true   // centerMapView
);

// Present multiple routes
mapView.presentRoutes(
    routes,
    routes.get(0), // mainRoute
    true,           // displayBubble
    true            // centerMapView
);

To remove displayed routes, use MapViewRoutesCollection.clear(). You can also remove individual routes with mapView.preferences?.routes?.remove(route).

Set route labels​

A route can include a label that provides information such as ETA, distance, toll prices, and more. To attach a label to a route, use the addWithAttributes method of the MapViewRoutesCollection:

• Kotlin
• Java

// Kotlin
mapView.preferences?.routes?.addWithAttributes(route, true, "Added label")

// Java
if (mapView.getPreferences() != null) {
    mapView.getPreferences().getRoutes().addWithAttributes(route, true, "Added label");
}

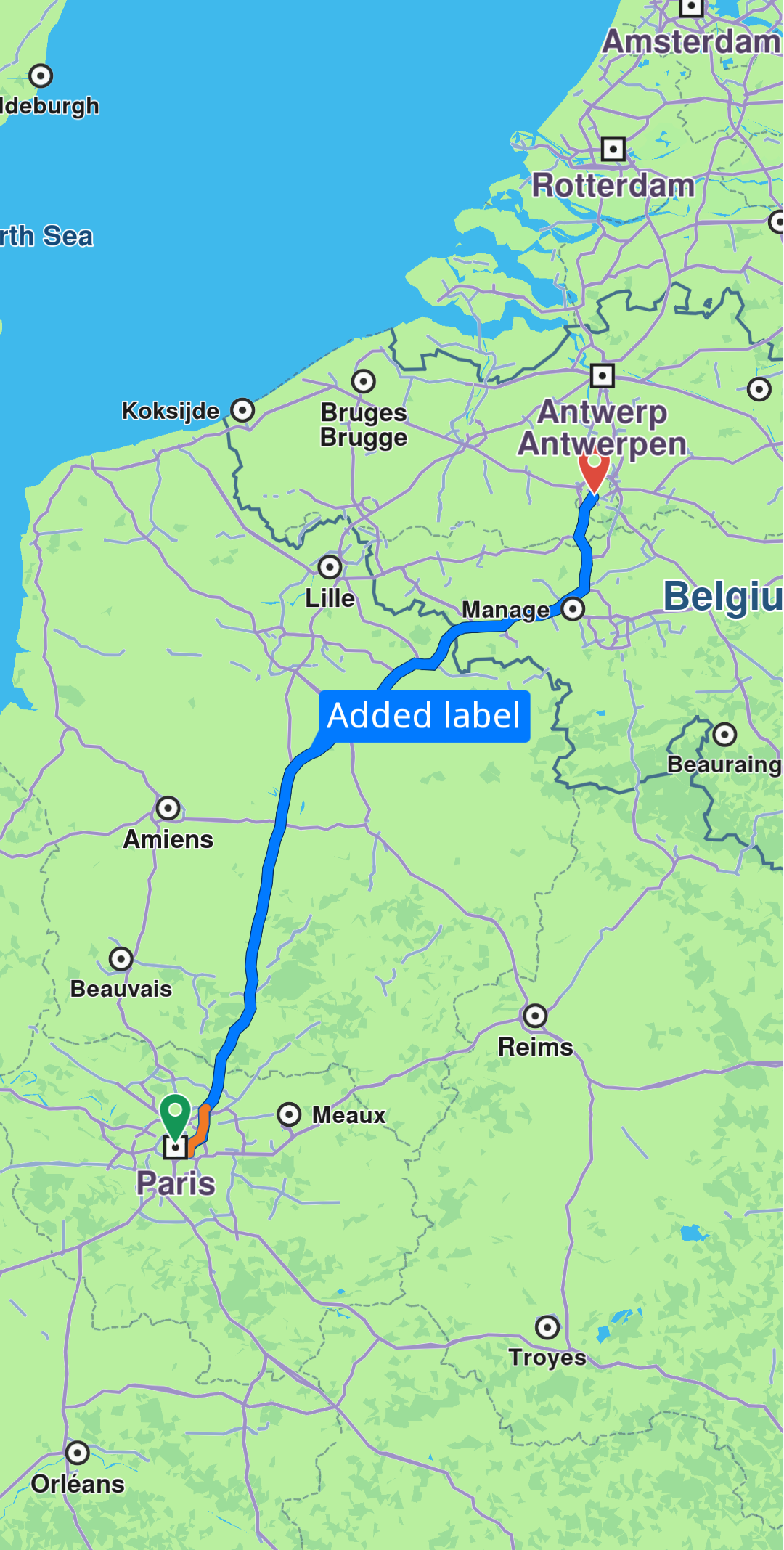

Route with label

You can enhance the label by adding up to two icons using the images parameter, which accepts an UnlImageList. Available icons can be accessed through the UnlImageDatabase class.

• Kotlin
• Java

// Kotlin
val images = UnlImageList().apply {
    UnlImageDatabase.tollImage?.let { add(it) }
    UnlImageDatabase.ferryImage?.let { add(it) }
}

mapView.preferences?.routes?.addWithAttributes(
    route, true,
    "This is a custom label",
    images
)

// Java
UnlImageList images = new UnlImageList();
if (UnlImageDatabase.getTollImage() != null) {
    images.add(UnlImageDatabase.getTollImage());
}
if (UnlImageDatabase.getFerryImage() != null) {
    images.add(UnlImageDatabase.getFerryImage());
}

if (mapView.getPreferences() != null) {
    mapView.getPreferences().getRoutes().addWithAttributes(
        route, true,
        "This is a custom label",
        images
    );
}

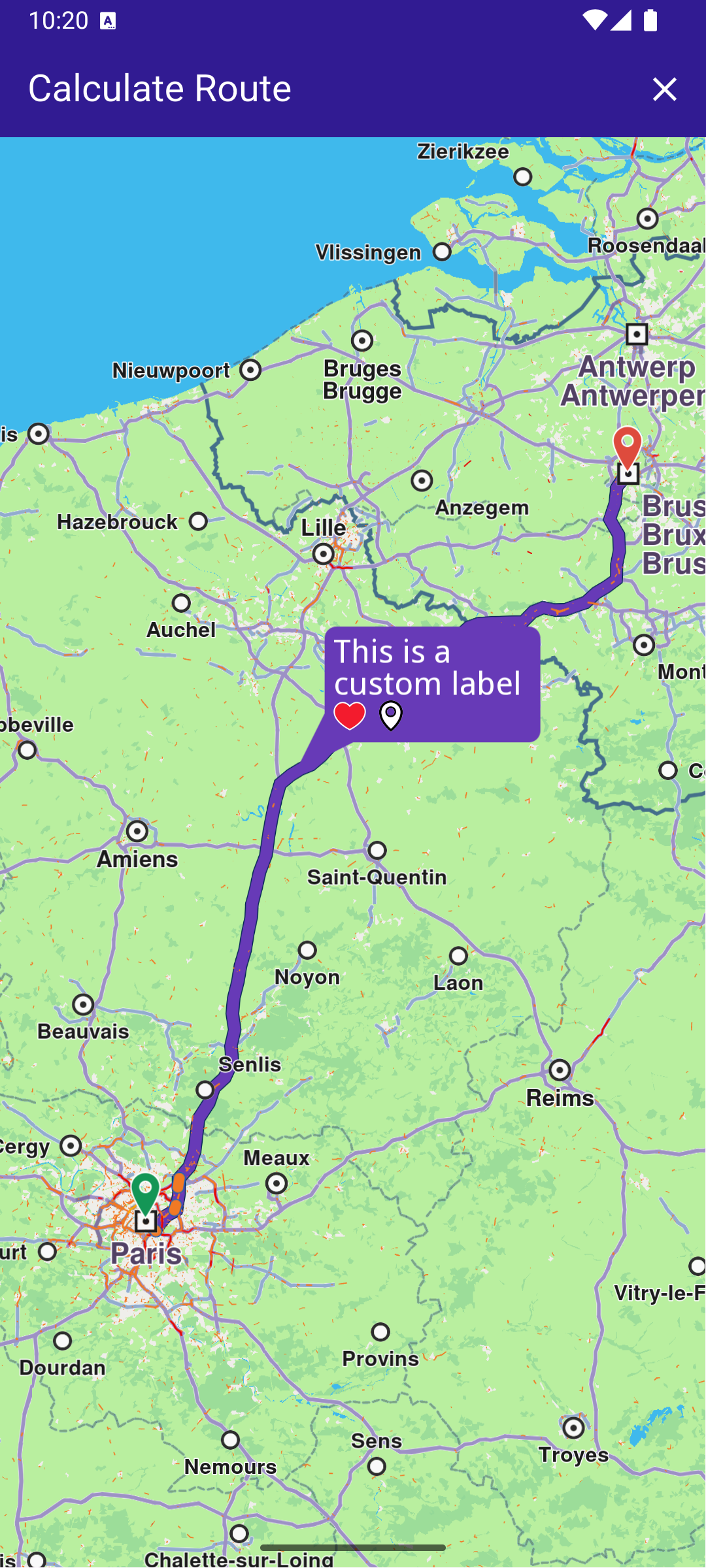

Label with custom icons

The label can also be auto-generated using route information:

• Kotlin
• Java

// Kotlin
// Auto-generated labels are created using route's timeDistance information
val route = routes.first()
val timeDistance = route.timeDistance!!
val distText = GemUtil.getDistText(timeDistance.totalDistance, UnlSdkSettings.unitSystem, true)
val timeText = GemUtil.getTimeText(timeDistance.totalTime)
val autoLabel = "${distText.first} ${distText.second}\n${timeText.first} ${timeText.second}"

mapView.preferences?.routes?.addWithAttributes(route, true, autoLabel)

// Java
// Auto-generated labels are created using route's timeDistance information
UnlRoute route = routes.get(0);
UnlTimeDistance timeDistance = route.getTimeDistance();
Pair<String, String> distText = GemUtil.getDistText(timeDistance.getTotalDistance(), UnlSdkSettings.getUnitSystem(), true);
Pair<String, String> timeText = GemUtil.getTimeText(timeDistance.getTotalTime());
String autoLabel = distText.getFirst() + " " + distText.getSecond() + "\n" + timeText.getFirst() + " " + timeText.getSecond();

if (mapView.getPreferences() != null) {
    mapView.getPreferences().getRoutes().addWithAttributes(route, true, autoLabel);
}

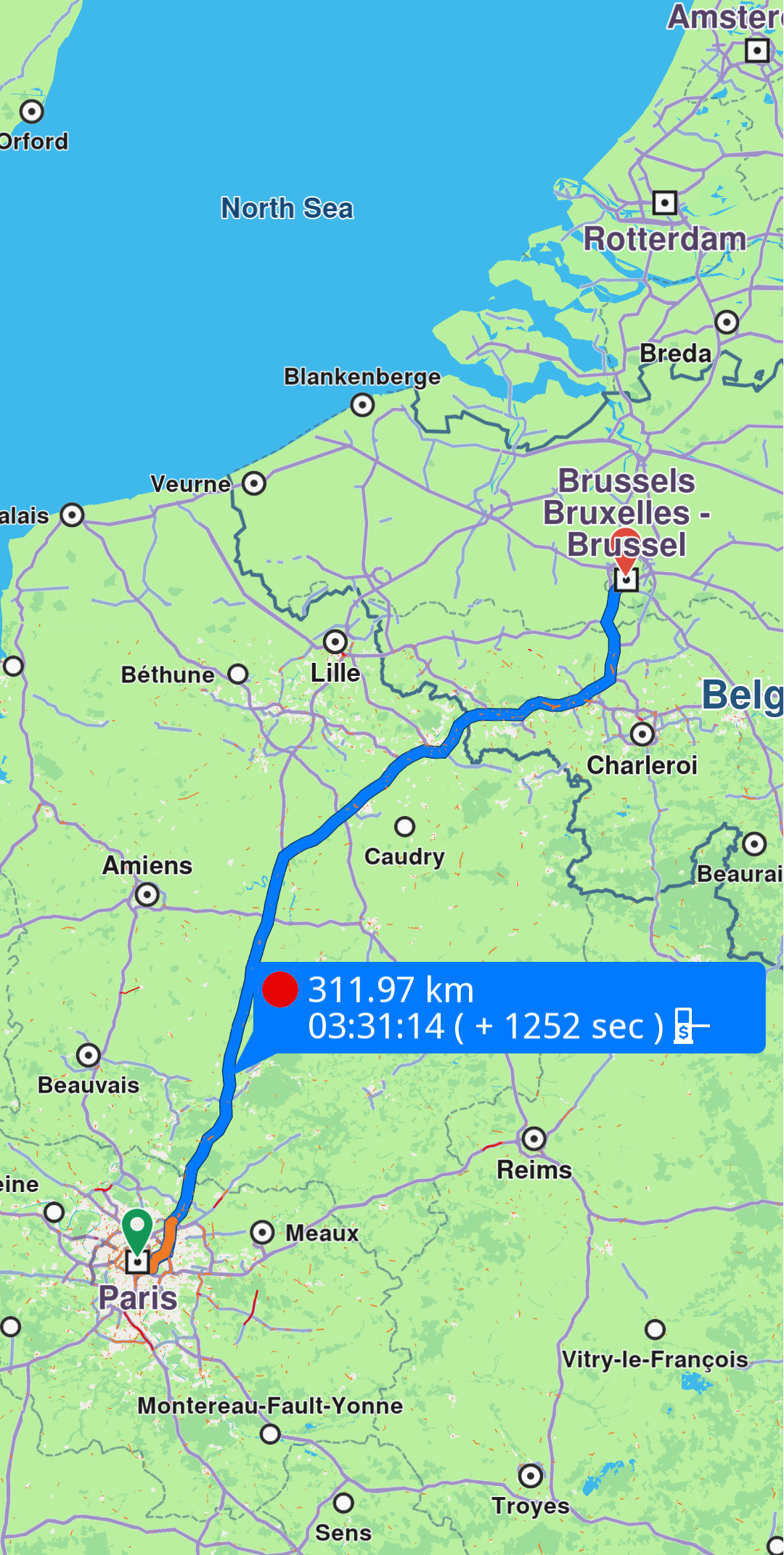

Route with generated label

The label of a route added to the collection can be hidden by calling MapViewRoutesCollection.hideLabel(route). Labels can also be managed through a UnlMapViewRoute object. The label property is used to assign a label, while the hideLabel() method can be used to hide it.

🚨 Danger

Auto-generated labels will override any customizations made with the label and images parameters.

Check what portion of a route is visible on a screen region​

To retrieve the visible portion of a route - defined by its start and end distances in meters - use the getVisibleRouteInterval method from the UnlMapView:

• Kotlin
• Java

// Kotlin
val visibleInterval = mapView.getVisibleRouteInterval(route, null)
val startRouteVisibleIntervalMeters = visibleInterval?.x?.toInt() ?: 0
val endRouteVisibleIntervalMeters = visibleInterval?.y?.toInt() ?: 0

// Java
PointF visibleInterval = mapView.getVisibleRouteInterval(route, null);
int startRouteVisibleIntervalMeters = visibleInterval != null ? (int) visibleInterval.x : 0;
int endRouteVisibleIntervalMeters = visibleInterval != null ? (int) visibleInterval.y : 0;

You can also provide a custom screen region to the getVisibleRouteInterval method by passing a UnlRect parameter, instead of using the entire viewport. The method will return null if the route is not visible on the provided viewport/region of the viewport
