Manage Content¶

The Navigation SDK for Android offers comprehensive functionality for managing offline content.

The supported downloadable content types are defined in the EContentType enum:

ViewStyleHighRes: High-dpi screen optimized map styles that can be applied offline. These include both a selection of default styles and user-created styles from the studio, based on the API key.
ViewStyleLowRes: Low-dpi screen map styles, optimized for smaller file sizes while maintaining essential details.
RoadMap: Offline maps covering countries and regions. Within a downloaded region, users can perform searches, calculate routes, and navigate without an internet connection.
HumanVoice: Pre-recorded voice files used to deliver spoken navigation instructions and warnings.

💡 TIP

For most use cases, the high-resolution map styles option is recommended over its low-resolution counterpart.

The ContentStore class is responsible for managing and providing a list of downloadable items. Each item is represented by the ContentStoreItem class, which encapsulates details such as name, image, type, version, and size. Additionally, it offers operations for downloading and deleting content.

🚨 DANGER

Ensure that the Service Key is both set and valid. Some operations might fail if no valid Service Key is set.

🚨 DANGER

Modifying downloaded maps (download, delete, update) may interrupt ongoing operations such as search, route calculation, or navigation.

List Online Content¶

To retrieve a list of available content from the UNL servers, use the asyncGetStoreContentList method from the ContentStore class. This method returns an ErrorCode and a UnlProgressListener for tracking the operation. The operation can be canceled using the returned UnlProgressListener.

The method accepts the content type as an argument and provides a callback with:

The operation error code
A list of ContentStoreItem objects
Kotlin
Java

// Kotlin
val (errorCode, progressListener) = ContentStore().asyncGetStoreContentList(
    EContentType.RoadMap,
    onStarted = {
        // Handle operation start
    },
    onProgress = {
        // Handle progress updates
    },
    onCompleted = { resultList, errorCode, hint ->
        if (errorCode == UnlError.NoError) {
            // Use the resultList of ContentStoreItem objects
        } else {
            Log.e("ContentStore", "Failed to get content list: ${UnlError.getMessage(errorCode)}")
        }
    }
)

// Java
Pair<Integer, UnlProgressListener> result = new ContentStore().asyncGetStoreContentList(
    EContentType.RoadMap,
    () -> {
        // Handle operation start
    },
    (progress) -> {
        // Handle progress updates
    },
    (resultList, errorCode, hint) -> {
        if (errorCode == UnlError.NoError) {
            // Use the resultList of ContentStoreItem objects
        } else {
            Log.e("ContentStore", "Failed to get content list: " + UnlError.getMessage(errorCode));
        }
    }
);
int errorCode = result.first;
UnlProgressListener progressListener = result.second;

📝 INFO

The asyncGetStoreContentList method should be called only when an active internet connection is available and the current offline version is not expired. If no internet connection is available or if the current offline map version is expired, use the getLocalContentList method to retrieve the offline content list instead.

🚨 DANGER

Do not invoke asyncGetStoreContentList before the map data is ready. Wait until the SDK has initialized the map properly before calling it.

List Local Content¶

The getLocalContentList method can be used to get the list of local content available offline.

Kotlin
Java

// Kotlin
val contentStore = ContentStore()
val items = contentStore.getLocalContentList(EContentType.RoadMap)
if (items != null) {
    // Do something with the items
    for (item in items) {
        Log.d("ContentStore", "Item: ${item.name}")
    }
}

// Java
ContentStore contentStore = new ContentStore();
ContentStoreItemList items = contentStore.getLocalContentList(EContentType.RoadMap);
if (items != null) {
    // Do something with the items
    for (ContentStoreItem item : items) {
        Log.d("ContentStore", "Item: " + item.getName());
    }
}

📝 INFO

The getLocalContentList method returns content store items that are either ready for use, currently downloading, or pending download.

Filter Content¶

To obtain a filtered list of available content from the UNL servers, use the asyncGetStoreFilteredList method from the ContentStore class. You can filter content by specifying country ISO 3166-1 alpha-3 codes and by geographic area.

Kotlin
Java

// Kotlin
val countries = arrayListOf("USA", "CAN")
val area = RectangleGeographicArea(
    topLeft = UnlCoordinates(latitude = 53.7731, longitude = -1.7990),
    bottomRight = UnlCoordinates(latitude = 38.4549, longitude = 21.1696)
)

val (errorCode, progressListener) = ContentStore().asyncGetStoreFilteredList(
    EContentType.RoadMap,
    countries,
    area,
    onCompleted = { resultList, errorCode, hint ->
        if (errorCode == UnlError.NoError) {
            // Use the filtered resultList
        }
    }
)

// Java
ArrayList<String> countries = new ArrayList<>(Arrays.asList("USA", "CAN"));
RectangleGeographicArea area = new RectangleGeographicArea(
    new UnlCoordinates(53.7731, -1.7990),
    new UnlCoordinates(38.4549, 21.1696)
);

Pair<Integer, UnlProgressListener> result = new ContentStore().asyncGetStoreFilteredList(
    EContentType.RoadMap,
    countries,
    area,
    (resultList, errorCode, hint) -> {
        if (errorCode == UnlError.NoError) {
            // Use the filtered resultList
        }
    }
);
int errorCode = result.first;
UnlProgressListener progressListener = result.second;

📝 INFO

The filtered content should be requested via a call to asyncGetStoreFilteredList method. Use the storeFilteredList property to retrieve previously filtered results.

Method behaviour¶

Condition	`onComplete` Result
The `countries` list contains invalid ISO 3166-1 alpha-3 codes	`UnlError.NoError` with an empty `ContentStoreItem` list.
The `countries` list includes countries incompatible with the specified `RectangleGeographicArea`	`UnlError.NoError` with an empty `ContentStoreItem` list.
Insufficient memory to complete the operation	`UnlError.NoMemory` with an empty `ContentStoreItem` list.
Invalid `UnlGeographicArea` (e.g., invalid coordinates)	`UnlError.NoError` with a full list of `ContentStoreItem`; behaves as if no filter was applied.
The `area` parameter is an empty `UnlGeographicArea`	`UnlError.InvalidInput` with an empty `ContentStoreItem` list.
HTTP request failed	`UnlError.General` with an empty `ContentStoreItem` list.

Content Store Item Fields¶

Fields Containing General Information¶

Field Name	Description
`name`	The name of the associated product, automatically translated.
`id`	The unique ID of the item in the content store.
`type`	The type of the product as an `EContentType` value.
`filename`	The full path to the content data file.
`totalSize`	The total size of the content in bytes.
`availableSize`	The downloaded size of the content.
`updateSize`	The update size if an update is available.
`status`	The current status of the item as an `EContentStoreItemStatus`.
`contentParameters`	Additional information about an item as a `ParameterList` object
`imagePreview`	The image associated with the content store item if available

💡 TIP

For checking if a ContentStoreItem is downloaded/available/downloading/updating use the status field value:

Unavailable: The content store item is not downloaded and cannot be used.

Completed: The content store item has been downloaded and is ready to be used.

Paused: The download operation has been paused by the user.

DownloadQueued: The download is queued and will proceed once resources are available.

DownloadWaiting: Waiting for a connection or other condition to proceed.

DownloadWaitingFreeNetwork: The SDK is waiting for a free network connection to continue the download.

DownloadRunning: The download is actively in progress.

UpdateWaiting: An update operation is underway.

The contentParameters field provides information such as:

For RoadMap type:

Copyright: Value containing the copyright information for the road map
MapDataProvider: Value containing the name of the map data provider
ReleaseDate: Value containing the release date for the road map
DefaultName: Value containing the name of the item
For ViewStyleHighRes type:
Background-Color: Value containing the background color in decimal format. Can be used to check if a style is a dark-mode or light-mode recommended style.
For HumanVoice type:
UnlLanguage and voice-related parameters

The image can be retrieved via the imagePreview property:

Kotlin
Java

// Kotlin
val item: ContentStoreItem = // ... obtain from store
if (item.isImagePreviewAvailable()) {
    val image = item.imagePreview
    // Use the image object
}

// Java
ContentStoreItem item = // ... obtain from store
if (item.isImagePreviewAvailable()) {
    UnlImage image = item.getImagePreview();
    // Use the image object
}

🚨 DANGER

Content store items of type RoadMap do not have an image preview. The MapDetails.getCountryFlag() method can be used to get the flag image associated with a country code instead.

Use the countryCodes property to obtain the country codes associated with a content store item of type RoadMap.

Fields Containing Download and Update Information¶

Field Name	Description
`clientVersion`	The client version of the content.
`updateVersion`	The update version if an update is available.
`downloadProgress`	The current download progress as a percentage.
`updateItem`	The corresponding update item if an update is in progress.
`isCompleted()`	Checks if the item has been completely downloaded.
`isUpdatable()`	Checks if the item has a newer version available.
`canDeleteContent()`	Checks if the content can be deleted.

While the download is in progress, you can retrieve details about the downloaded content:

isCompleted(): Returns true if the download is completed; otherwise, returns false.
downloadProgress: Returns the download progress as an integer between 0 and 100.
status: Returns the current status of the content store item.

Fields Relevant to `EContentType.RoadMap` Type Items¶

Field Name	Description
`chapterName`	Some large countries are divided into multiple content store items. All items within the same country share the same chapter.
`countryCodes`	A list of country codes (ISO 3166-1 alpha-3) associated with the product.
`language`	The full language details for the product.

Fields Relevant to `EContentType.HumanVoice` Type Items¶

Field Name	Description
`countryCodes`	A list of country codes (ISO 3166-1 alpha-3) associated with the product.
`language`	The full language details for the product.

Download Content Store Item¶

For downloading a content store item, the asyncDownload method can be used:

Kotlin
Java

// Kotlin
val item: ContentStoreItem = // ... obtain from store
val errorCode = item.asyncDownload(
    onProgress = {
        Log.d("Download", "Progress: $it%")
    },
    onCompleted = { error,_ ->
        if (error == UnlError.NoError) {
            Log.d("Download", "Completed successfully")
        } else {
            Log.e("Download", "Error: ${UnlError.getMessage(error)}")
        }
    }
)

// Java
ContentStoreItem item = // ... obtain from store
int errorCode = item.asyncDownload(
    (progress) -> {
        Log.d("Download", "Progress: " + progress + "%");
    },
    (error, hint) -> {
        if (error == UnlError.NoError) {
            Log.d("Download", "Completed successfully");
        } else {
            Log.e("Download", "Error: " + UnlError.getMessage(error));
        }
    }
);

The onCompleted callback is invoked at the end of the operation, returning the result of the download. If the item is successfully downloaded, the error code is UnlError.NoError. In case of an error, other values may be returned.

Additionally, users can provide an optional onProgress callback to receive real-time progress updates. This callback is triggered with the current download progress, represented as an integer between 0 and 100.

Download on Charged Networks¶

The SDK includes functionality to restrict downloads on networks with additional charges.

To enable downloads on such networks, use the allowChargedNetworks parameter in the asyncDownload method:

Kotlin
Java

// Kotlin
val errorCode = item.asyncDownload(
    allowChargedNetworks = true,  // Allow downloads on charged networks
    onCompleted = { error,_ ->
        // Handle completion
    }
)

// Java
int errorCode = item.asyncDownload(
    true,  // Allow downloads on charged networks
    (error, hint) -> {
        // Handle completion
    }
);

If a download operation is requested while the user is on a charged network and allowChargedNetworks is false, the download will be automatically scheduled and will proceed once the user switches to a non-charged network. In this case, the status field of the corresponding ContentStoreItem object will be set to EContentStoreItemStatus.DownloadWaitingFreeNetwork.

Pause Download¶

The download can be paused using the pauseDownload() method. To resume the download, call asyncDownload() again.

Kotlin
Java

// Kotlin
val item: ContentStoreItem = // ... obtain from store
val errorCode = item.pauseDownload()
if (errorCode == UnlError.NoError) {
    Log.d("Download", "Download paused")
}

// Java
ContentStoreItem item = // ... obtain from store
int errorCode = item.pauseDownload();
if (errorCode == UnlError.NoError) {
    Log.d("Download", "Download paused");
}

🚨 DANGER

No further download operations should be performed on the ContentStoreItem object until the pause operation has completed.

Delete Downloaded Content¶

Downloaded content can be removed from local storage by calling the deleteContent() method on the corresponding ContentStoreItem object:

Kotlin
Java

// Kotlin
val item: ContentStoreItem = // ... obtain from store
if (item.canDeleteContent()) {
    val errorCode = item.deleteContent()
    if (errorCode == UnlError.NoError) {
        Log.d("ContentStore", "Item ${item.name} deleted successfully")
    }
} else {
    Log.w("ContentStore", "Item cannot be deleted")
}

// Java
ContentStoreItem item = // ... obtain from store
if (item.canDeleteContent()) {
    int errorCode = item.deleteContent();
    if (errorCode == UnlError.NoError) {
        Log.d("ContentStore", "Item " + item.getName() + " deleted successfully");
    }
} else {
    Log.w("ContentStore", "Item cannot be deleted");
}

🚨 DANGER

Do not confuse the functionality provided by the ContentStore / ContentStoreItem classes with that of the UnlMapDownloaderService class.

The ContentStore API is designed for downloading full offline content, including data required for features such as free-text search, routing, and turn-by-turn navigation.

In contrast, the UnlMapDownloaderService is intended for caching map tiles mainly for visual display purposes. Tiles downloaded via UnlMapDownloaderService do not support most search operations, routing or navigation while offline.

See the download individual map tiles documentation for more details about the UnlMapDownloaderService.

Also, do not confuse the UnlLandmarkStore class with the ContentStore class. The UnlLandmarkStore is a collection used for managing landmark data, while the ContentStore is a service used for managing offline map content.

Delete Downloaded Content¶

Downloaded content can be removed from local storage by calling the deleteContent method on the corresponding ContentStoreItem object, after checking if the item can be removed:

if (contentStoreItem.canDeleteContent){
    final error = contentStoreItem.deleteContent();
    showSnackbar("Item ${contentStoreItem.name} deletion resulted with code $error");
} else {
    showSnackbar("Item cannot be deleted");
}

🚨 DANGER

Do not confuse the functionality provided by the ContentStore / ContentStoreItem classes with that of the UnlMapDownloaderService class.

The ContentStore API is designed for downloading full offline content, including data required for features such as free-text search, routing, and turn-by-turn navigation.

In contrast, the UnlMapDownloaderService is intended for caching map tiles mainly for visual display purposes. Tiles downloaded via UnlMapDownloaderService do not support most search operations, routing or navigation while offline.

See the download individual map tiles documentation for more details about the UnlMapDownloaderService.

Also, do not confuse the UnlLandmarkStore class with the ContentStore class. The UnlLandmarkStore is a collection used for managing landmark data, while the ContentStore is a service used for managing offline map content.

Downloading overlays¶

Overlays can be downloaded for specific regions to enable offline functionality. To do this, you must first download a map region, after which the overlays become available for download within those offline areas. The offline data grabber automatically downloads overlay data when enabled.

Kotlin
Java

// Kotlin
val overlayService = OverlayService()
val overlayId = ECommonOverlayId.Safety.value // Example overlay UID (e.g., speed cameras)

if (!overlayService.isOverlayOfflineDataGrabberSupported(overlayId)) {
    Log.w("OverlayService", "Overlay offline data grabber not supported for this overlay")
    return
}

// Enable the offline data grabber
val errorCode = overlayService.enableOverlayOfflineDataGrabber(overlayId)
if (errorCode == UnlError.NoError) {
    Log.d("OverlayService", "Offline data grabber enabled successfully")
} else {
    Log.e("OverlayService", "Failed to enable offline data grabber: ${UnlError.getMessage(errorCode)}")
}

// Disable the grabber when it's no longer needed
// val disableErrorCode = overlayService.disableOverlayOfflineDataGrabber(overlayId)

// Java
OverlayService overlayService = new OverlayService();
int overlayId = ECommonOverlayId.Safety.getValue(); // Example overlay UID (e.g., speed cameras)

if (!overlayService.isOverlayOfflineDataGrabberSupported(overlayId)) {
    Log.w("OverlayService", "Overlay offline data grabber not supported for this overlay");
    return;
}

// Enable the offline data grabber
int errorCode = overlayService.enableOverlayOfflineDataGrabber(overlayId);
if (errorCode == UnlError.NoError) {
    Log.d("OverlayService", "Offline data grabber enabled successfully");
} else {
    Log.e("OverlayService", "Failed to enable offline data grabber: " + UnlError.getMessage(errorCode));
}

// Disable the grabber when it's no longer needed
// int disableErrorCode = overlayService.disableOverlayOfflineDataGrabber(overlayId);

🚨 DANGER

Not all overlays support offline data grabbing. Use the isOverlayOfflineDataGrabberSupported method to check if a specific overlay supports this feature.

After enabling the offline data grabber, the overlay data will be automatically downloaded when a map region is downloaded or updated. The overlay items will then be available in offline mode within the downloaded map regions. You can verify if the overlay data has been successfully downloaded if overlay items are visible inside the downloaded map region in offline mode.

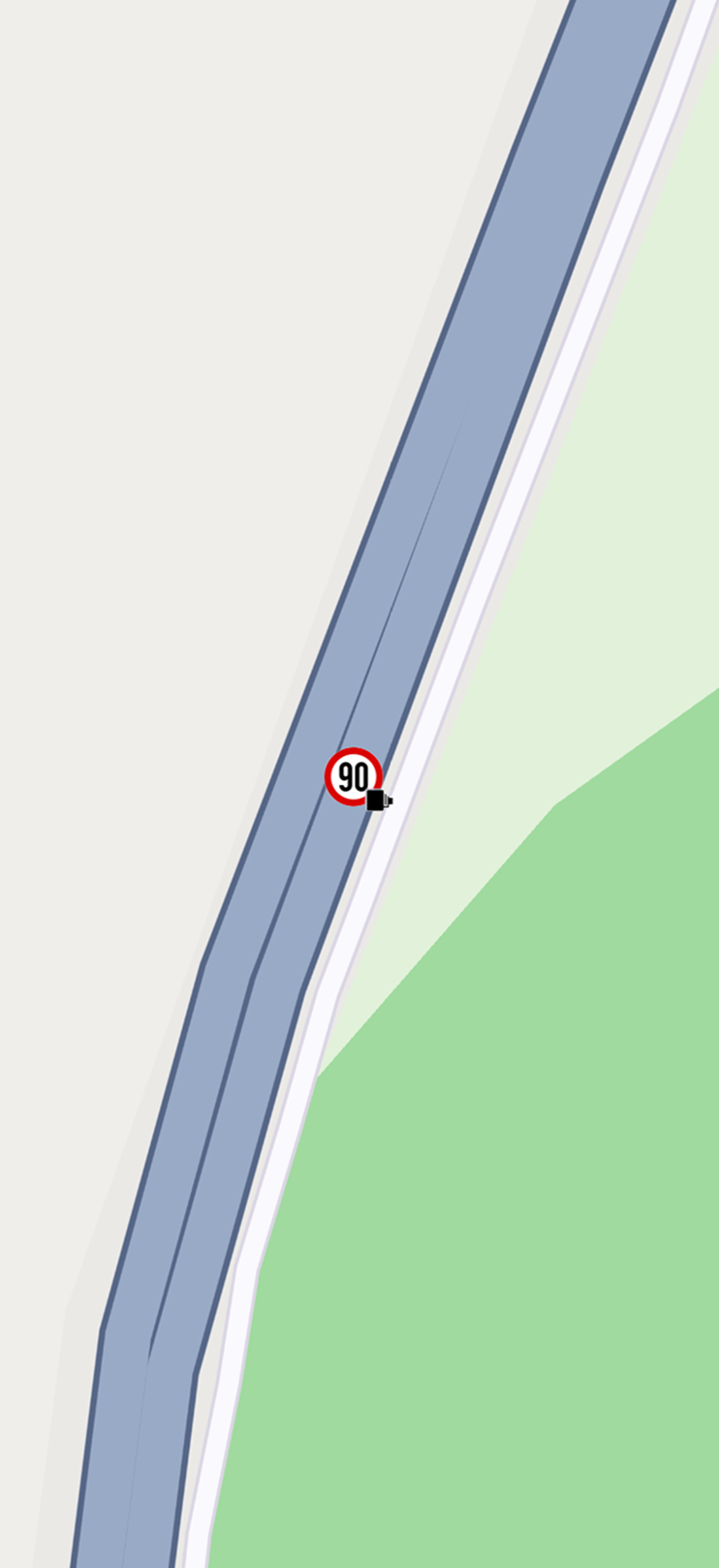

Offline Speed Camera Overlay

Offline speed camera overlay item visibl

💡 TIP

Ensure to enable the offline data grabber using enableOverlayOfflineDataGrabber and verify the returned error code is UnlError.NoError. If the overlay UID is unsupported, the method will return an error code other than UnlError.NoError.

📝 INFO

Not all overlay types support offline functionality (e.g., Alerts or Public Transit Stops). For instance, public transport stops will still require an internet connection to display the relevant data, thus will be rendered as landmarks instead of overlay items in offline mode.

You can check if the overlay data grabber has been enabled for a specific overlay using the isOverlayOfflineDataGrabberEnabled method. Keeping the grabber enabled will make the grabber automatically start downloading overlay data when a new map region is downloaded or updated. This enables the user to have the latest offline overlay data available.

Download or update content in background¶

To enable content updates and downloads while the app runs in the background, you must configure your app to support foreground services. This ensures that the Android system does not terminate the download process when the app is backgrounded.

For detailed guidance on implementing foreground services for background operations, please refer to the Background Location guide.

Manage Content¶

List Online Content​¶

List Local Content​¶

Filter Content​¶

Method behaviour​¶

Content Store Item Fields​¶

Fields Containing General Information​¶

Fields Containing Download and Update Information​¶

Fields Relevant to EContentType.RoadMap Type Items​¶

Fields Relevant to EContentType.HumanVoice Type Items​¶

Download Content Store Item​¶

Download on Charged Networks​¶

Pause Download​¶

Delete Downloaded Content​¶

Delete Downloaded Content​¶

Downloading overlays​¶

Download or update content in background​¶

List Online Content¶

List Local Content¶

Filter Content¶

Method behaviour¶

Content Store Item Fields¶

Fields Containing General Information¶

Fields Containing Download and Update Information¶

Fields Relevant to `EContentType.RoadMap` Type Items¶

Fields Relevant to `EContentType.HumanVoice` Type Items¶

Download Content Store Item¶

Download on Charged Networks¶

Pause Download¶

Delete Downloaded Content¶

Delete Downloaded Content¶

Downloading overlays¶

Download or update content in background¶
