Recorder¶

The Recorder module is a comprehensive tool designed for managing sensor data recording in the Android SDK.

The Recorder supports a wide range of configurable parameters through the RecorderConfiguration, allowing developers to tailor recording behavior to specific application needs. Features include:

Customizable storage options: Define log directories, manage disk space, and specify the duration of recordings.
Data type selection: Specify which data types (e.g., video, audio, or sensor data) to record.
Video and audio options: Set video resolution, enable/disable audio recording, and manage chunk durations. It's possible to record only sensor data, sensor data + video, sensor data + audio or sensor data + video + audio.

The Recorder provides comprehensive methods to control the recording lifecycle:

Start and stop recordings.
Runtime configuration updates for recording parameters.
Listener management for recording events and status changes.
Status monitoring to track the current recording state.
User data injection for adding custom metadata during recording.
Automatic restarts for continuous recording with chunked durations.

The Recorder supports various transportation modes (e.g., car, pedestrian, bike), enabling detailed analysis and classification of recordings based on context.

To prevent overwhelming the device's storage, the Recorder allows for setting disk space limits and automatically manages logs based on specified retention thresholds.

Initialize the Recorder¶

The Recorder cannot be directly instantiated. Instead, the produce method is used to obtain a configured Recorder instance.

Kotlin
Java

// Kotlin
import com.unlmap.sdk.dashcam.*
import com.unlmap.sdk.sensordatasource.*
import com.unlmap.sdk.sensordatasource.enums.EDataType
import com.unlmap.sdk.core.enums.EResolution
import com.unlmap.sdk.core.Parameter
import com.unlmap.sdk.core.ParameterList
import android.util.Log

val dataSource = DataSourceFactory.produceLive()
if (dataSource == null) {
    Log.e(TAG, "The datasource could not be created")
    return
}

val recorderConfiguration = RecorderConfiguration(
    logsDir = tracksPath,
    dataSource = dataSource,
    types = arrayListOf(EDataType.Position)
)

val recorder = Recorder.produce(recorderConfiguration)
if (recorder == null) {
    Log.e(TAG, "Recorder could not be created")
    return
}

// Java
import com.unlmap.sdk.dashcam.*;
import com.unlmap.sdk.sensordatasource.*;
import com.unlmap.sdk.sensordatasource.enums.EDataType;
import com.unlmap.sdk.core.enums.EResolution;
import com.unlmap.sdk.core.Parameter;
import com.unlmap.sdk.core.ParameterList;
import android.util.Log;

DataSource dataSource = DataSourceFactory.produceLive();
if (dataSource == null) {
    Log.e(TAG, "The datasource could not be created");
    return;
}

ArrayList<EDataType> types = new ArrayList<>(Arrays.asList(EDataType.Position));
RecorderConfiguration recorderConfiguration = new RecorderConfiguration(
    tracksPath,
    dataSource,
    types
);

Recorder recorder = Recorder.produce(recorderConfiguration);
if (recorder == null) {
    Log.e(TAG, "Recorder could not be created");
    return;
}

📝 INFO

If the dataSource, logsDir and types parameters are not populated with valid data, the startRecording method will return UnlError.General and no data will be recorded.

Configure the `RecorderConfiguration`¶

Recorder configuration attribute	Description
logsDir	The directory used to keep the logs
dataSource	The source providing the data to be recorded
types	The data types that will be recorded (recordedTypes in constructor)
continuousRecording	Whether the recording should continue automatically when chunk time achieved
chunkDurationSeconds	The chunk duration time in seconds
enableAudio	This flag will be used to determine if audio is needed to be recorded or not
videoQuality	The video quality (EResolution enum)
keepMinimumSeconds	Will not delete any record if this threshold is not reached
deleteOlderThanKeepMin	Older logs that exceeds minimum kept seconds threshold should be deleted
diskSpaceLimitMb	When reached, it will stop the recording

🚨 DANGER

If the log duration is shorter than a minimum threshold, the stopRecording method of Recorder will not save the recording and will return UnlError.General.

The UnlError.General result might be returned if the application has been sent to background without making the required configuration. See the record while app is in background section below.

Always ensure that the EDataType values passed to the types parameter are supported by the target platform.

💡 TIP

The Android file system provides external storage paths for saving recordings. The following snippet shows how to obtain a valid folder path:

Kotlin

Java

```kotlin // Kotlin import android.content.Context import java.io.File

fun getTracksPath(context: Context): String { val rootDir = context.getExternalFilesDir(null) val tracksDir = File(rootDir, "Data/Tracks")

if (!tracksDir.exists()) { tracksDir.mkdirs() }

return tracksDir.absolutePath }

```

```java // Java import android.content.Context; import java.io.File;

public String getTracksPath(Context context) { File rootDir = context.getExternalFilesDir(null); File tracksDir = new File(rootDir, "Data/Tracks");

if (!tracksDir.exists()) { tracksDir.mkdirs(); }

return tracksDir.getAbsolutePath(); }

```

The videoQuality parameter is based on the EResolution enum defined below. Each value represents a standard video resolution that affects recording quality and storage requirements.

Camera Resolutions¶

EResolution Enum Value	Description	Dimensions (pixels)
`EResolution.Unknown`	No resolution set.	-
`EResolution.SD480p`	Standard Definition	640 × 480
`EResolution.HD720p`	High Definition	1280 × 720
`EResolution.FullHD1080p`	Full HD	1920 × 1080
`EResolution.WQHD1440p`	Wide Quad HD	2560 × 1440
`EResolution.UHD4K2160p`	Ultra HD (4K)	3840 × 2160
`EResolution.UHD8K4320p`	Ultra HD (8K)	7680 × 4320

💡 TIP

The actual disk usage depends on platform and encoding settings, but here are rough size estimates used internally by the SDK for calculating space requirements:

Resolution Approx. Bytes/sec Approx. MB/min

sd480p 210,000 \~12 MB/min

hd720p 629,760 \~37 MB/min

fullHD1080p 3,774,874 \~130 MB/min

Note: 1 MB = 1,048,576 bytes (binary MB). These are estimates and may vary slightly by platform and encoding settings.

Note: These values are used to pre-check disk availability when chunkDurationSeconds is set.

Recording lifecycle¶

Starting the Recorder:
Call the startRecording method to initiate recording. The recorder transitions to the recording state.
Chunked Recordings:
If a chunk duration is set in the configuration, the recording automatically stops when the duration is reached. A new recording will begin seamlessly if continuous recording is enabled, ensuring uninterrupted data capture.
Stopping the Recorder:
The stopRecording method halts recording, and the system ensures logs meet the configured minimum duration before saving them as .gm files inside logsDir.

How to use the Recorder¶

The following sections will present some use cases for the recorder, demonstrating its functionality in different scenarios.

Kotlin
Java

// Kotlin
val tracksPath = getTracksPath(this)
val dataSource = DataSourceFactory.produceLive()

if (dataSource == null) {
    Log.e(TAG, "The datasource could not be created")
    return
}

val recorderConfiguration = RecorderConfiguration(
    logsDir = tracksPath,
    dataSource = dataSource,
    types = arrayListOf(EDataType.Position)
)

// Create recorder based on configuration
val recorder = Recorder.produce(recorderConfiguration)

if (recorder == null) {
    Log.e(TAG, "Recorder could not be created")
    return
}

val errorStart = recorder.startRecording()
if (errorStart != UnlError.NoError) {
    Log.e(TAG, "Error starting recording: $errorStart")
}

// Other code

val errorStop = recorder.stopRecording()
if (errorStop != UnlError.NoError) {
    Log.e(TAG, "Error stopping recording: $errorStop")
}

// Java
String tracksPath = getTracksPath(this);
DataSource dataSource = DataSourceFactory.produceLive();

if (dataSource == null) {
    Log.e(TAG, "The datasource could not be created");
    return;
}

ArrayList<EDataType> types = new ArrayList<>(Arrays.asList(EDataType.Position));
RecorderConfiguration recorderConfiguration = new RecorderConfiguration(
    tracksPath,
    dataSource,
    types
);

// Create recorder based on configuration
Recorder recorder = Recorder.produce(recorderConfiguration);

if (recorder == null) {
    Log.e(TAG, "Recorder could not be created");
    return;
}

UnlError errorStart = recorder.startRecording();
if (errorStart != UnlError.NoError) {
    Log.e(TAG, "Error starting recording: " + errorStart);
}

// Other code

UnlError errorStop = recorder.stopRecording();
if (errorStop != UnlError.NoError) {
    Log.e(TAG, "Error stopping recording: " + errorStop);
}

🚨 DANGER

The Recorder will only save data explicitly defined in the types list, any other data will be ignored.

🚨 DANGER

The startRecording and stopRecording methods should be called appropriately to ensure proper execution. Otherwise it may lead to unexpected behavior.

💡 TIP

Don't forget to request permission for location usage before starting a recorder.

Recorder Permissions¶

To use the recorder with camera, microphone, and optionally location or external media access, you need to declare the appropriate permissions in your AndroidManifest.xml.

By default, recordings can be saved in your app's internal storage. This requires only camera, audio, and location permissions. However, if you want to save recordings to the device's gallery, Downloads folder, or any public/external storage, you'll also need additional media permissions.

<!-- Required for camera recording -->
<uses-permission android:name="android.permission.CAMERA" />

<!-- Required for audio recording -->
<uses-permission android:name="android.permission.RECORD_AUDIO" />

<!-- Required if your recording setup uses location data -->
<uses-permission android:name="android.permission.ACCESS_FINE_LOCATION" />
<uses-permission android:name="android.permission.ACCESS_COARSE_LOCATION" />

<!-- Required if saving to public folders or accessing gallery content -->
<uses-permission android:name="android.permission.READ_MEDIA_IMAGES" /> <!-- Android 13+ -->
<uses-permission android:name="android.permission.READ_EXTERNAL_STORAGE" />

These permissions should be placed inside the <manifest> block of your android/app/src/main/AndroidManifest.xml.

Runtime permission requests are also required on Android 6.0+ (API 23+). Use ActivityCompat.requestPermissions() to request permissions at runtime.

More info: Android Manifest permissions

Record audio¶

The recorder also supports audio recording. To enable this functionality, set the enableAudio parameter in the RecorderConfiguration to true and invoke the startAudioRecording method from the Recorder class. To stop the audio recording, use the stopAudioRecording method. The following code snippet illustrates this process:

Kotlin
Java

// Kotlin
val recorderConfiguration = RecorderConfiguration(
    logsDir = tracksPath,
    dataSource = dataSource,
    types = arrayListOf(EDataType.Position)
)

// Enable audio in configuration
recorderConfiguration.enableAudio = true

// Create recorder based on configuration
val recorder = Recorder.produce(recorderConfiguration)

if (recorder == null) {
    Log.e(TAG, "Recorder could not be created")
    return
}

val errorStart = recorder.startRecording()
if (errorStart != UnlError.NoError) {
    Log.e(TAG, "Error starting recording: $errorStart")
}

// At any moment enable audio recording
recorder.startAudioRecording()

// Other code

// At any moment stop audio recording
recorder.stopAudioRecording()

val errorStop = recorder.stopRecording()
if (errorStop != UnlError.NoError) {
    Log.e(TAG, "Error stopping recording: $errorStop")
}

// Java
ArrayList<EDataType> types = new ArrayList<>(Arrays.asList(EDataType.Position));
RecorderConfiguration recorderConfiguration = new RecorderConfiguration(
    tracksPath,
    dataSource,
    types
);

// Enable audio in configuration
recorderConfiguration.setEnableAudio(true);

// Create recorder based on configuration
Recorder recorder = Recorder.produce(recorderConfiguration);

if (recorder == null) {
    Log.e(TAG, "Recorder could not be created");
    return;
}

UnlError errorStart = recorder.startRecording();
if (errorStart != UnlError.NoError) {
    Log.e(TAG, "Error starting recording: " + errorStart);
}

// At any moment enable audio recording
recorder.startAudioRecording();

// Other code

// At any moment stop audio recording
recorder.stopAudioRecording();

UnlError errorStop = recorder.stopRecording();
if (errorStop != UnlError.NoError) {
    Log.e(TAG, "Error stopping recording: " + errorStop);
}

💡 TIP

The audio recording will result in a log file of type .mp4. This file also contains the binary data of a .gm file, but it is accessible by system players.

🚨 DANGER

Don't forget to request permission for microphone usage if you set the enableAudio parameter to true.

Record video¶

The recorder also supports video recording. To enable this functionality, add EDataType.Camera to the types and set the videoQuality parameter in the RecorderConfiguration to your desired resolution, we recommend using EResolution.HD720p. The video recording starts at the call of the startRecording method and stops at the stopRecording method. The following code snippet illustrates this process:

Kotlin
Java

// Kotlin
val recorderConfiguration = RecorderConfiguration(
    logsDir = tracksPath,
    dataSource = dataSource,
    types = arrayListOf(EDataType.Position, EDataType.Camera)
)

// Set video quality
recorderConfiguration.videoQuality = EResolution.HD720p

// Create recorder based on configuration
val recorder = Recorder.produce(recorderConfiguration)

if (recorder == null) {
    Log.e(TAG, "Recorder could not be created")
    return
}

val errorStart = recorder.startRecording()
if (errorStart != UnlError.NoError) {
    Log.e(TAG, "Error starting recording: $errorStart")
}

// Other code

val errorStop = recorder.stopRecording()
if (errorStop != UnlError.NoError) {
    Log.e(TAG, "Error stopping recording: $errorStop")
}

// Java
ArrayList<EDataType> types = new ArrayList<>(Arrays.asList(EDataType.Position, EDataType.Camera));
RecorderConfiguration recorderConfiguration = new RecorderConfiguration(
    tracksPath,
    dataSource,
    types
);

// Set video quality
recorderConfiguration.setVideoQuality(EResolution.HD720p);

// Create recorder based on configuration
Recorder recorder = Recorder.produce(recorderConfiguration);

if (recorder == null) {
    Log.e(TAG, "Recorder could not be created");
    return;
}

UnlError errorStart = recorder.startRecording();
if (errorStart != UnlError.NoError) {
    Log.e(TAG, "Error starting recording: " + errorStart);
}

// Other code

UnlError errorStop = recorder.stopRecording();
if (errorStop != UnlError.NoError) {
    Log.e(TAG, "Error stopping recording: " + errorStop);
}

💡 TIP

The camera recording will result in a log file of type .mp4. This file also contains the binary data of a .gm file, but it is accessible by system players.

🚨 DANGER

Don't forget to request permission for camera usage if you add the EDataType.Camera parameter to types.

⚠️ WARNING

If using chunkDuration

When chunkDuration is set, the SDK will check available disk space before starting the recording.

If there isn't enough space to store an entire chunk (based on the selected resolution), the recorder will not start and will return UnlError.noDiskSpace.

Make sure to estimate required storage ahead of time. See Camera Resolutions for expected sizes.

Record multimedia¶

To record a combination of audio, video and sensors you can do that by setting up the RecorderConfiguration with all the desired functionalities. The following code snippet illustrates this process:

Kotlin
Java

// Kotlin
val recorderConfiguration = RecorderConfiguration(
    logsDir = tracksPath,
    dataSource = dataSource,
    types = arrayListOf(EDataType.Position, EDataType.Camera)
)

// Set video quality and enable audio
recorderConfiguration.videoQuality = EResolution.HD720p
recorderConfiguration.enableAudio = true

// Create recorder based on configuration
val recorder = Recorder.produce(recorderConfiguration)

if (recorder == null) {
    Log.e(TAG, "Recorder could not be created")
    return
}

val errorStart = recorder.startRecording()
if (errorStart != UnlError.NoError) {
    Log.e(TAG, "Error starting recording: $errorStart")
}

// At any moment enable audio recording
recorder.startAudioRecording()

// Other code

// At any moment stop audio recording
recorder.stopAudioRecording()

val errorStop = recorder.stopRecording()
if (errorStop != UnlError.NoError) {
    Log.e(TAG, "Error stopping recording: $errorStop")
}

// Java
ArrayList<EDataType> types = new ArrayList<>(Arrays.asList(EDataType.Position, EDataType.Camera));
RecorderConfiguration recorderConfiguration = new RecorderConfiguration(
    tracksPath,
    dataSource,
    types
);

// Set video quality and enable audio
recorderConfiguration.setVideoQuality(EResolution.HD720p);
recorderConfiguration.setEnableAudio(true);

// Create recorder based on configuration
Recorder recorder = Recorder.produce(recorderConfiguration);

if (recorder == null) {
    Log.e(TAG, "Recorder could not be created");
    return;
}

UnlError errorStart = recorder.startRecording();
if (errorStart != UnlError.NoError) {
    Log.e(TAG, "Error starting recording: " + errorStart);
}

// At any moment enable audio recording
recorder.startAudioRecording();

// Other code

// At any moment stop audio recording
recorder.stopAudioRecording();

UnlError errorStop = recorder.stopRecording();
if (errorStop != UnlError.NoError) {
    Log.e(TAG, "Error stopping recording: " + errorStop);
}

💡 TIP

The audio recording will result in a log file of type .mp4. This file also contains the binary data of a .gm file, but it is accessible by system players.

🚨 DANGER

Don't forget to request permission for camera and microphone usage if you set the enableAudio parameter to true and add the EDataType.Camera parameter to types.

🚨 DANGER

Don't forget to request permission for camera and microphone usage if you set the enableAudio parameter to true and add the EDataType.Camera parameter to types.

Runtime Configuration Updates¶

The Recorder supports updating certain configuration parameters during runtime without stopping the recording:

Kotlin
Java

// Kotlin
val recorder = Recorder.produce(recorderConfiguration)
if (recorder == null) {
    Log.e(TAG, "Recorder could not be created")
    return
}

// Update disk space limit during runtime (in MB)
recorder.setDiskSpaceLimit(500)

// Update minimum keep duration during runtime (in seconds)
recorder.setKeepMinimumSeconds(60)

// Update chunk duration during runtime (in seconds)
recorder.setChunkDurationInSeconds(120)

// Enable/disable continuous recording during runtime
recorder.setContinuousRecording(true)

// Java
Recorder recorder = Recorder.produce(recorderConfiguration);
if (recorder == null) {
    Log.e(TAG, "Recorder could not be created");
    return;
}

// Update disk space limit during runtime (in MB)
recorder.setDiskSpaceLimit(500);

// Update minimum keep duration during runtime (in seconds)
recorder.setKeepMinimumSeconds(60);

// Update chunk duration during runtime (in seconds)
recorder.setChunkDurationInSeconds(120);

// Enable/disable continuous recording during runtime
recorder.setContinuousRecording(true);

These methods allow you to dynamically adjust recording behavior based on changing conditions, such as available storage space or user preferences.

💡 TIP

Runtime configuration changes take effect immediately and apply to the current and subsequent recordings.

Audio Recording Status¶

You can check whether audio recording is currently active using the isAudioRecording method:

Kotlin
Java

// Kotlin
val recorder = Recorder.produce(recorderConfiguration)
if (recorder == null) {
    Log.e(TAG, "Recorder could not be created")
    return
}

// Start recording
recorder.startRecording()

// Start audio recording
recorder.startAudioRecording()

// Check if audio recording is active
if (recorder.isAudioRecording()) {
    Log.d(TAG, "Audio recording is currently active")
} else {
    Log.d(TAG, "Audio recording is not active")
}

// Java
Recorder recorder = Recorder.produce(recorderConfiguration);
if (recorder == null) {
    Log.e(TAG, "Recorder could not be created");
    return;
}

// Start recording
recorder.startRecording();

// Start audio recording
recorder.startAudioRecording();

// Check if audio recording is active
if (recorder.isAudioRecording()) {
    Log.d(TAG, "Audio recording is currently active");
} else {
    Log.d(TAG, "Audio recording is not active");
}

Recorder Status and Configuration¶

You can access the current recorder status and configuration at any time:

Kotlin
Java

// Kotlin
val recorder = Recorder.produce(recorderConfiguration)
if (recorder == null) {
    Log.e(TAG, "Recorder could not be created")
    return
}

// Get current recording status
val currentStatus = recorder.status
Log.d(TAG, "Current recorder status: $currentStatus")

// Get current configuration
val currentConfig = recorder.configuration
Log.d(TAG, "Current configuration: $currentConfig")

// Java
Recorder recorder = Recorder.produce(recorderConfiguration);
if (recorder == null) {
    Log.e(TAG, "Recorder could not be created");
    return;
}

// Get current recording status
Object currentStatus = recorder.getStatus();
Log.d(TAG, "Current recorder status: " + currentStatus);

// Get current configuration
RecorderConfiguration currentConfig = recorder.getConfiguration();
Log.d(TAG, "Current configuration: " + currentConfig);

Adding User Data¶

The Recorder allows you to add custom user data to recordings, which can be useful for marking specific events or adding contextual information:

Kotlin
Java

// Kotlin
val recorder = Recorder.produce(recorderConfiguration)
if (recorder == null) {
    Log.e(TAG, "Recorder could not be created")
    return
}

recorder.startRecording()

// Add user data at any point during recording
val userData = "Important event occurred at intersection"
recorder.addUserData(userData)

// You can add multiple data points throughout the recording
recorder.addUserData("Speed bump detected")
recorder.addUserData("Traffic light: red")

// Java
Recorder recorder = Recorder.produce(recorderConfiguration);
if (recorder == null) {
    Log.e(TAG, "Recorder could not be created");
    return;
}

recorder.startRecording();

// Add user data at any point during recording
String userData = "Important event occurred at intersection";
recorder.addUserData(userData);

// You can add multiple data points throughout the recording
recorder.addUserData("Speed bump detected");
recorder.addUserData("Traffic light: red");

💡 TIP

User data is embedded in the .gm file and can be retrieved when processing the recorded logs.

Recorder Event Listeners¶

The Recorder supports event listeners for monitoring recording status changes and receiving notifications:

Kotlin
Java

// Kotlin
// Define a listener interface (this would typically be provided by the SDK)
val recordingListener = object : RecordingEventListener {
    override fun onRecordingStarted() {
        Log.d(TAG, "Recording started")
    }

    override fun onRecordingStopped() {
        Log.d(TAG, "Recording stopped")
    }

    override fun onChunkCompleted(chunkPath: String) {
        Log.d(TAG, "Chunk completed: $chunkPath")
    }

    override fun onError(error: String) {
        Log.e(TAG, "Recording error: $error")
    }
}

val recorder = Recorder.produce(recorderConfiguration)
if (recorder == null) {
    Log.e(TAG, "Recorder could not be created")
    return
}

// Add listener
recorder.addListener(recordingListener)

// Start recording
recorder.startRecording()

// Remove listener when no longer needed
recorder.removeListener(recordingListener)

// Java
// Define a listener interface (this would typically be provided by the SDK)
RecordingEventListener recordingListener = new RecordingEventListener() {
    @Override
    public void onRecordingStarted() {
        Log.d(TAG, "Recording started");
    }

    @Override
    public void onRecordingStopped() {
        Log.d(TAG, "Recording stopped");
    }

    @Override
    public void onChunkCompleted(String chunkPath) {
        Log.d(TAG, "Chunk completed: " + chunkPath);
    }

    @Override
    public void onError(String error) {
        Log.e(TAG, "Recording error: " + error);
    }
};

Recorder recorder = Recorder.produce(recorderConfiguration);
if (recorder == null) {
    Log.e(TAG, "Recorder could not be created");
    return;
}

// Add listener
recorder.addListener(recordingListener);

// Start recording
recorder.startRecording();

// Remove listener when no longer needed
recorder.removeListener(recordingListener);

💡 TIP

Use listeners to update your UI, handle errors, or trigger actions when recording events occur.

Background Location Recording¶

To enable location recording while the app is in background, the allowsBackgroundLocationUpdates flag must be enabled on the PositionSensorConfiguration of the data source. You must also update the Android platform-specific configuration files.

Android Example¶

Kotlin
Java

// Kotlin
val tracksPath = getTracksPath(this)

// Create the live data source
val dataSource = DataSourceFactory.produceLive()
if (dataSource == null) {
    Log.e(TAG, "The datasource could not be created")
    return
}

// Enable background location updates
val config = dataSource.getPreferences(EDataType.Position) ?: arrayListOf()
config.add(Parameter("allowsBackgroundLocationUpdates", "true"))
val result = dataSource.setPreferences(EDataType.Position, config)
if (result != 0) {
    Log.e(TAG, "Failed to set background location preferences: $result")
}

// Create the recorder with config
val recorderConfiguration = RecorderConfiguration(
    logsDir = tracksPath,
    dataSource = dataSource,
    types = arrayListOf(EDataType.Position)
)

val recorder = Recorder.produce(recorderConfiguration)
if (recorder == null) {
    Log.e(TAG, "Recorder could not be created")
    return
}

// Start recording
val errorStart = recorder.startRecording()
if (errorStart != UnlError.NoError) {
    Log.e(TAG, "Error starting recording: $errorStart")
}

// Java
String tracksPath = getTracksPath(this);

// Create the live data source
DataSource dataSource = DataSourceFactory.produceLive();
if (dataSource == null) {
    Log.e(TAG, "The datasource could not be created");
    return;
}

// Enable background location updates
ArrayList<Parameter> config = dataSource.getPreferences(EDataType.Position);
if (config == null) {
    config = new ArrayList<>();
}
config.add(new Parameter("allowsBackgroundLocationUpdates", "true"));
int result = dataSource.setPreferences(EDataType.Position, config);
if (result != 0) {
    Log.e(TAG, "Failed to set background location preferences: " + result);
}

// Create the recorder with config
ArrayList<EDataType> types = new ArrayList<>(Arrays.asList(EDataType.Position));
RecorderConfiguration recorderConfiguration = new RecorderConfiguration(
    tracksPath,
    dataSource,
    types
);

Recorder recorder = Recorder.produce(recorderConfiguration);
if (recorder == null) {
    Log.e(TAG, "Recorder could not be created");
    return;
}

// Start recording
UnlError errorStart = recorder.startRecording();
if (errorStart != UnlError.NoError) {
    Log.e(TAG, "Error starting recording: " + errorStart);
}

Android Manifest¶

Add the following permissions to your android/app/src/main/AndroidManifest.xml:

<!-- Foreground location -->
<uses-permission android:name="android.permission.ACCESS_FINE_LOCATION" />
<uses-permission android:name="android.permission.ACCESS_COARSE_LOCATION" />

<!-- Background location (required for Android 10+) -->
<uses-permission android:name="android.permission.ACCESS_BACKGROUND_LOCATION" />

💡 TIP

To record while the app is in background, ensure the device/battery settings allow background activity.

Runtime Permission¶

On Android 6.0+ (API 23+), background location requires runtime permissions. Use ActivityCompat.requestPermissions() to request permissions:

Kotlin
Java

import androidx.core.app.ActivityCompat
import android.Manifest

// Request background location permission
ActivityCompat.requestPermissions(
    this,
    arrayOf(Manifest.permission.ACCESS_BACKGROUND_LOCATION),
    REQUEST_BACKGROUND_LOCATION_CODE
)

import androidx.core.app.ActivityCompat;
import android.Manifest;

// Request background location permission
ActivityCompat.requestPermissions(
    this,
    new String[]{Manifest.permission.ACCESS_BACKGROUND_LOCATION},
    REQUEST_BACKGROUND_LOCATION_CODE
);

🚨 DANGER

If the allowsBackgroundLocationUpdates flag is not enabled and the app is backgrounded during recording, calling stopRecording may result in UnlError.general.

Recorder setup
Permissions

Recorder Bookmarks and Metadata¶

The SDK utilizes the proprietary .gm file format for recordings, offering several advantages over standard file types:

Supports multiple data types, including acceleration, rotation, and more.
Allows embedding custom user data in binary format.
Enables automatic storage management by the SDK to optimize space usage.

Recordings are saved as .gm or .mp4 files by the Recorder. The RecorderBookmarks class provides functionality for managing recordings, including exporting .gm or .mp4 files to other formats such as .gpx, as well as importing external formats and converting them to .gm for seamless SDK integration.

Additionally, the LogMetadata class serves as an object-oriented representation of a .gm or .mp4 file, offering features such as retrieving start and end timestamps, coordinates, and path details at varying levels of precision.

The RecorderBookmarks class for enhanced log management:

Export and Import Logs: Convert logs to/from different formats such as GPX, NMEA, and KML.
Log Metadata: Retrieve details like start and end timestamps, transport mode and size.

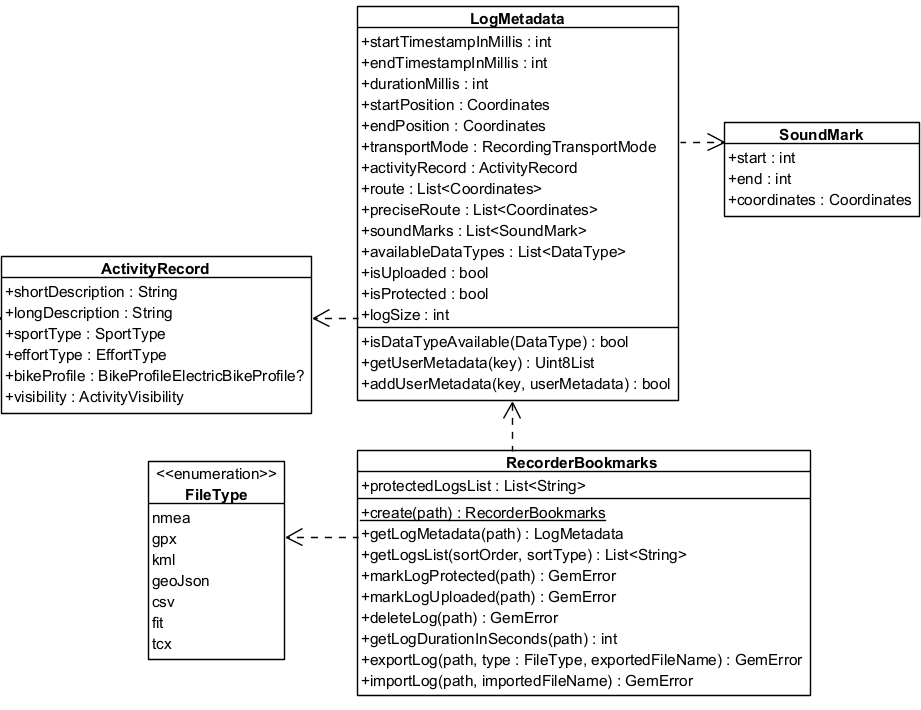

In the following class diagram you can see the main classes used by the RecorderBookmarks and the relationships between them:

RecorderBookmarks

Export logs¶

Kotlin
Java

// Kotlin
// Create recorderBookmarks
// It loads all .gm and .mp4 files at logsDir
val bookmarks = RecorderBookmarks.produce(tracksPath)

if (bookmarks == null) {
    Log.e(TAG, "Bookmarks could not be created")
    return
}

// Get list of logs
val logList = bookmarks.logsList

// Export last recording with a given album name
// Assumes the logList is not empty
if (logList.isNotEmpty()) {
    val exportResult = bookmarks.exportLog(
        logFile = logList.last(),
        albumName = "My_Album_Name"
    ) { resultCode, message ->
        // Completion callback
        if (resultCode == 0) {
            Log.d(TAG, "Export successful: $message")
        } else {
            Log.e(TAG, "Export failed with code $resultCode: $message")
        }
    }

    // Check immediate return value
    if (exportResult != 0) {
        Log.e(TAG, "Export failed to start with code: $exportResult")
    }
}

// Java
// Create recorderBookmarks
// It loads all .gm and .mp4 files at logsDir
RecorderBookmarks bookmarks = RecorderBookmarks.produce(tracksPath);

if (bookmarks == null) {
    Log.e(TAG, "Bookmarks could not be created");
    return;
}

// Get list of logs
List<String> logList = bookmarks.getLogsList();

// Export last recording with a given album name
// Assumes the logList is not empty
if (!logList.isEmpty()) {
    int exportResult = bookmarks.exportLog(
        logList.get(logList.size() - 1),
        "My_Album_Name",
        (resultCode, message) -> {
            // Completion callback
            if (resultCode == 0) {
                Log.d(TAG, "Export successful: " + message);
            } else {
                Log.e(TAG, "Export failed with code " + resultCode + ": " + message);
            }
        }
    );

    // Check immediate return value
    if (exportResult != 0) {
        Log.e(TAG, "Export failed to start with code: " + exportResult);
    }
}

The resulting file will be exported to the specified album. The completion callback provides the final result of the export operation.

🚨 DANGER

Exporting a .gm file to other formats may result in data loss, depending on the data types supported by each format.

💡 TIP

The exported file will be in the same directory as the original log file.

💡 TIP

The exported file will be in the same directory as the original log file.

Log Management Operations¶

The RecorderBookmarks class provides additional methods for managing recordings:

Kotlin
Java

// Kotlin
val bookmarks = RecorderBookmarks.produce(tracksPath)
if (bookmarks == null) {
    Log.e(TAG, "Bookmarks could not be created")
    return
}

val logList = bookmarks.logsList
if (logList.isNotEmpty()) {
    val logFile = logList.first()

    // Mark a log as protected (prevents automatic deletion)
    val protectResult = bookmarks.markLogProtected(logFile, true)
    if (protectResult == 0) {
        Log.d(TAG, "Log marked as protected")
    }

    // Mark a log as uploaded
    val uploadedResult = bookmarks.markLogUploaded(logFile, true)
    if (uploadedResult == 0) {
        Log.d(TAG, "Log marked as uploaded")
    }

    // Delete a specific log
    val deleteResult = bookmarks.deleteLog(logFile)
    if (deleteResult == 0) {
        Log.d(TAG, "Log deleted successfully")
    } else {
        Log.e(TAG, "Failed to delete log: $deleteResult")
    }
}

// Java
RecorderBookmarks bookmarks = RecorderBookmarks.produce(tracksPath);
if (bookmarks == null) {
    Log.e(TAG, "Bookmarks could not be created");
    return;
}

List<String> logList = bookmarks.getLogsList();
if (!logList.isEmpty()) {
    String logFile = logList.get(0);

    // Mark a log as protected (prevents automatic deletion)
    int protectResult = bookmarks.markLogProtected(logFile, true);
    if (protectResult == 0) {
        Log.d(TAG, "Log marked as protected");
    }

    // Mark a log as uploaded
    int uploadedResult = bookmarks.markLogUploaded(logFile, true);
    if (uploadedResult == 0) {
        Log.d(TAG, "Log marked as uploaded");
    }

    // Delete a specific log
    int deleteResult = bookmarks.deleteLog(logFile);
    if (deleteResult == 0) {
        Log.d(TAG, "Log deleted successfully");
    } else {
        Log.e(TAG, "Failed to delete log: " + deleteResult);
    }
}

💡 TIP

Protected logs will not be automatically deleted by the SDK's storage management system, even when disk space limits are reached.

🚨 DANGER

Be careful when using deleteLog as it permanently removes the recording file from storage.

Access metadata¶

Each log contains metadata accessible through the LogMetadata class.

Kotlin
Java

// Kotlin
val bookmarks = RecorderBookmarks.produce(logsDir)
if (bookmarks != null) {
    val logList = bookmarks.logsList
    if (!logList.isNullOrEmpty()) {
        val logMetadata = bookmarks.getMetadata(logList.last())
    }
}

// Java
RecorderBookmarks bookmarks = RecorderBookmarks.produce(logsDir);
if (bookmarks != null) {
    List<String> logList = bookmarks.getLogsList();
    if (logList != null && !logList.isEmpty()) {
        LogMetadata logMetadata = bookmarks.getMetadata(logList.get(logList.size() - 1));
    }
}

🚨 DANGER

The getMetadata method will return null if the log file does not exist inside the logsDir directory or if the log file is not a valid .gm file.

The metadata within a LogMetadata object contains:

startPosition / endPosition: Geographic coordinates for the log's beginning and end.
route: A list of route coordinates from the recorded log.
startTimestampInMillis / endTimestampInMillis: Timestamp of the first/last sensor data.
durationMillis: Log duration.
isProtected(): Check if a log file is protected. Protected logs will not be automatically deleted.
isUploaded(): Check if log file was uploaded.
logSize: Get the log size in bytes.
isDataTypeAvailable(type): Verify if a data type is produced by the log file.
soundMarks: A list of recorded soundmarks.
availableDataTypes: List of the available data types in this log.

To visualize the recorded route, a UnlPath object can be constructed using the route coordinates from the LogMetadata. This path can then be displayed on a map. For more details, refer to the documentation on the path entity and display paths.

📝 INFO

Some features mentioned in other documentation versions (such as custom user metadata, activity records, and log metrics) are not available in the current Android SDK implementation.

Record while app is in background¶

The recording might fail with error code UnlError.General when calling stopRecording if the app is sent to the background during the recording. Enable allowsBackgroundLocationUpdates on the PositionSensorConfiguration associated to the data source before instantiating the Recorder:

In the app's manifest file add the ACCESS_BACKGROUND_LOCATION permission.

Kotlin
Java

// Kotlin
val dataSource = DataSourceFactory.produceLive()
if (dataSource == null) {
    Log.e(TAG, "The datasource could not be created")
    return
}

val sensorConfiguration = dataSource.getPreferences(EDataType.Position) ?: arrayListOf()
sensorConfiguration.add(Parameter("allowsBackgroundLocationUpdates", "true"))
val result = dataSource.setPreferences(EDataType.Position, sensorConfiguration)
if (result != 0) {
    Log.e(TAG, "Failed to set background location preferences: $result")
}

val recorderConfiguration = RecorderConfiguration(
    logsDir = logsDir,
    dataSource = dataSource,
    types = arrayListOf(EDataType.Position)
)

val recorder = Recorder.produce(recorderConfiguration)

// Java
DataSource dataSource = DataSourceFactory.produceLive();
if (dataSource == null) {
    Log.e(TAG, "The datasource could not be created");
    return;
}

ArrayList<Parameter> sensorConfiguration = dataSource.getPreferences(EDataType.Position);
if (sensorConfiguration == null) {
    sensorConfiguration = new ArrayList<>();
}
sensorConfiguration.add(new Parameter("allowsBackgroundLocationUpdates", "true"));
int result = dataSource.setPreferences(EDataType.Position, sensorConfiguration);
if (result != 0) {
    Log.e(TAG, "Failed to set background location preferences: " + result);
}

ArrayList<EDataType> types = new ArrayList<>(Arrays.asList(EDataType.Position));
RecorderConfiguration recorderConfiguration = new RecorderConfiguration(
    logsDir,
    dataSource,
    types
);

Recorder recorder = Recorder.produce(recorderConfiguration);

Resolution	Approx. Bytes/sec	Approx. MB/min
`sd480p`	210,000	\~12 MB/min
`hd720p`	629,760	\~37 MB/min
`fullHD1080p`	3,774,874	\~130 MB/min

Recorder¶

Initialize the Recorder​¶

Configure the RecorderConfiguration​¶

Camera Resolutions​¶

Recording lifecycle​¶

How to use the Recorder​¶

Recorder Permissions​¶

Record audio​¶

Record video​¶

Record multimedia​¶

Runtime Configuration Updates​¶

Audio Recording Status​¶

Recorder Status and Configuration​¶

Adding User Data​¶

Recorder Event Listeners​¶

Background Location Recording​¶

Android Example​¶

Android Manifest​¶

Runtime Permission​¶

Related​¶

Recorder Bookmarks and Metadata​¶

Export logs​¶

Log Management Operations​¶

Access metadata​¶

Record while app is in background​¶
